Pundit Lab / Pundit Lab+

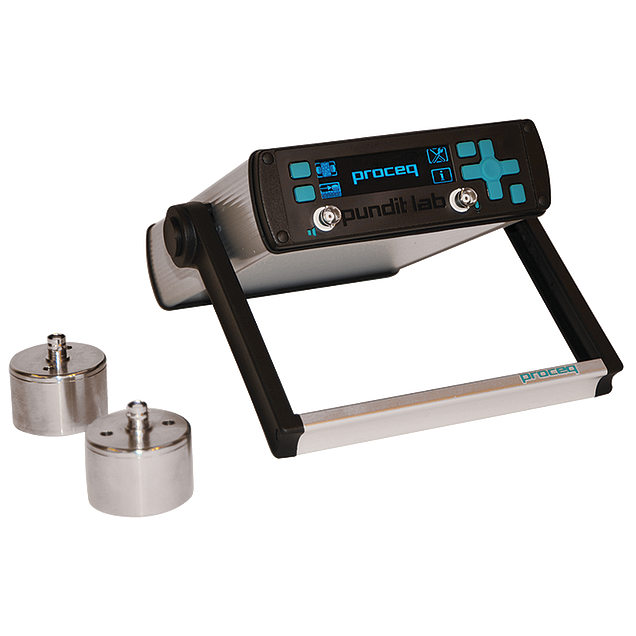

Proceq Pundit Lab ultrasonic pulse velocity tester
32610001 / 32620001

The Pundit Lab is a flexible ultrasonic pulse velocity (UPV) test instrument designed primarily for operation in laboratories. It supports all traditional UPV test modes. The Pundit Lab+ comes with an extended feature set.

Ultrasonic testing provides information on the strength and uniformity of concrete, rock, composites, ceramics, wood, epoxy, refractory materials and can be used to detect and localize voids, pipes, cracks and defects which could result in serious damage and collapses.

This is the direct successor to the popular PUNDIT 6 and PUNDIT PLUS products that were manufactured by CNS Farnell before they were acquired by Proceq.

Technical Specification

Measuring Range             Up to 15 m depending on concrete quality
Bandwidth                         20 to 500 kHz
Measuring Resolution       0.1 us
Receiver Gain                   1x, 10x, 100x, AUTO, Pundit Lab+ up to 1000x
Pulse Voltage UPV            125 to 500 V
Pulse Shape                      Square Wave
Number Of Channels         1
Kit comes complete with:

  • Display unit
  • 2 transducers (54kHz),
  • 2 BNC cables 1.5 m
  • couplant
  • calibration rod
  • battery charger with USB-cable
  • 4x AA(LR6) batteries
  • data carrier with software documentation
  • carrying case
