Protimeter Surveymaster 2

Protimeter surveymaster 2

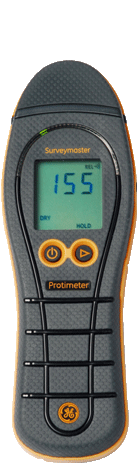

The Protimeter Surveymaster2 (BLD5365) is a newly developed dual mode moisture meter which allows the user to distinguish between sub-surface and surface moisture.

Centring around the enhanced ergonomic case, instruments larger digital LCD backlit screen eliminates the moisture readings, supported by 60 coloured LEDs depicting the severity of the moisture reading.

Features and Benefits

Durable and rugged construction
Large, clear backlit display
Measure mode - Direct two-pin measure %WME
Search mode - Non-invasive measuring - no pin marks left
Colour changing LED’s to show moisture condition
Reset reading for sensitivity adjustment
Allows rapid assessment of building moisture
Instant readings in a wide range of building materials
Detects moisture directly in materials
Detects moisture below wall / floor coverings (tile, wood, vinyl)
Non-invasive measurement not adversely affected by surface moisture
Two meters in one

Technical Specification

Measurement Range (%WME)

- Pin measurement                              7.9% to 99% WME

- Non-invasive                                     70 - 999 REL (relative)

Depth of Measurement

Non-invasive                                        up to 19 mm

Pin                                                        up to 12.7 mm



Display 1                                              Digital LCD display

Display 2                                              60 LEDs -
                                                             green (dry)
                                                             yellow (at risk)
                                                             red (wet)

Power                                                  9V battery (included)

Weight                                                 225g

Dimensions (mm)                              190 x 70 x 49
