Compression Load Cell - Heavy Duty

Compression Load Cell - Heavy Duty


Heavy duty weighing, rolling mills, industrial platform, calibration of test machines, load measurement for geophysical work such as plate bearing tests, measuring the load applied in presses.

Design Features

The standard design incorporates a captive integrated self-aligning top platen to ensure accurate measurement of any miss-aligned loads. The spherical faces of the platen are lapped to ensure accuracy for the most demanding calibration standards.


These load cells can be supplied with a factory works calibration certificate traceable to national standards or a NPL calibration certificate. They can also be supplied tested and ready for calibration by the customers preferred test laboratory.

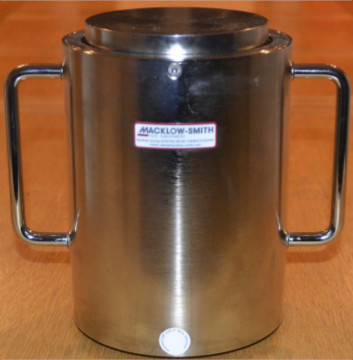

Carry handles (for larger capacities)
Plug and socket arrangement for separate cable Loading pad (for ISO376 calibration)
Carry case
Various display units to suit application

Technical Specification

Rated output 2.0mV/V nominal

Linearity 0.25% of rated output

Non repeatability 0.25% of rated output

Zero Return (30min) 0.05% of applied load

Zero balance ± 1% of rated output

Operating temperature -30°C - +80°C

Compensated temp’ -10°C - +70°C

Temp’ effect on output ± 0.1% of applied load/°C

Temp’ effect on zero± 0.02% of rated output/°C

Safe overload 150% of rated capacity

Ultimate overload 300% or rated capacity

Excitation 5V -15 V, AC or DC

Input impedance 760 Ω nominal

Output impedance 700 Ω nominal

Insulation resistance >2 GΩ at 50 V DC

Construction Plated alloy steel

Environmental IP65

Cable (standard) 4 core screened
